BOXEXPERT GRP Gehäuse Serie Elbe Polyester
Außenmaße: 220x120x90mm
Material: Glasfaserverstärktes Polyester
Farbe: Graphitschwarz, RAL 9011
Schutzart: IP66
Schlagfestigkeit: IK08
Temperaturbereich: -40 bis +80 °C
inkl. Deckelschrauben + Erdungsschraube
39,22 €
inkl. MwSt. zzgl. Versandkosten
Sofort versandfertig, Lieferfrist 1-3 Tage
| Farbe in RAL |
RAL9011 |
|---|
| Farbe |
Graphitschwarz |
|---|
| Gewicht (g) |
0 |
|---|
| Schutzart |
IP66 |
|---|
| Beschichtung |
Nein |
|---|
| Material: Deckel / Tür |
GRP |
|---|
| Material: Unterteil |
GRP |
|---|
| Betriebstemperatur |
-40°C …+80°C |
|---|
| Beschichtung |
Nein |
|---|
| Beständigkeit |
Alkalien, Öle, Salze, Laugen, Lösungsmittel usw. |
|---|
| Deckel - Transparent |
Nein |
|---|
| Außenmaß |
220 x 120 x 90 |
|---|
| Innenmaß |
x x |
|---|
| UL |
Ja |
|---|
| ATEX |
Nein |
|---|
| Halogenfrei |
Ja |
|---|
| Schlagfestigkeit |
IK 08 |
|---|
   |
„*“ zeigt erforderliche Felder an

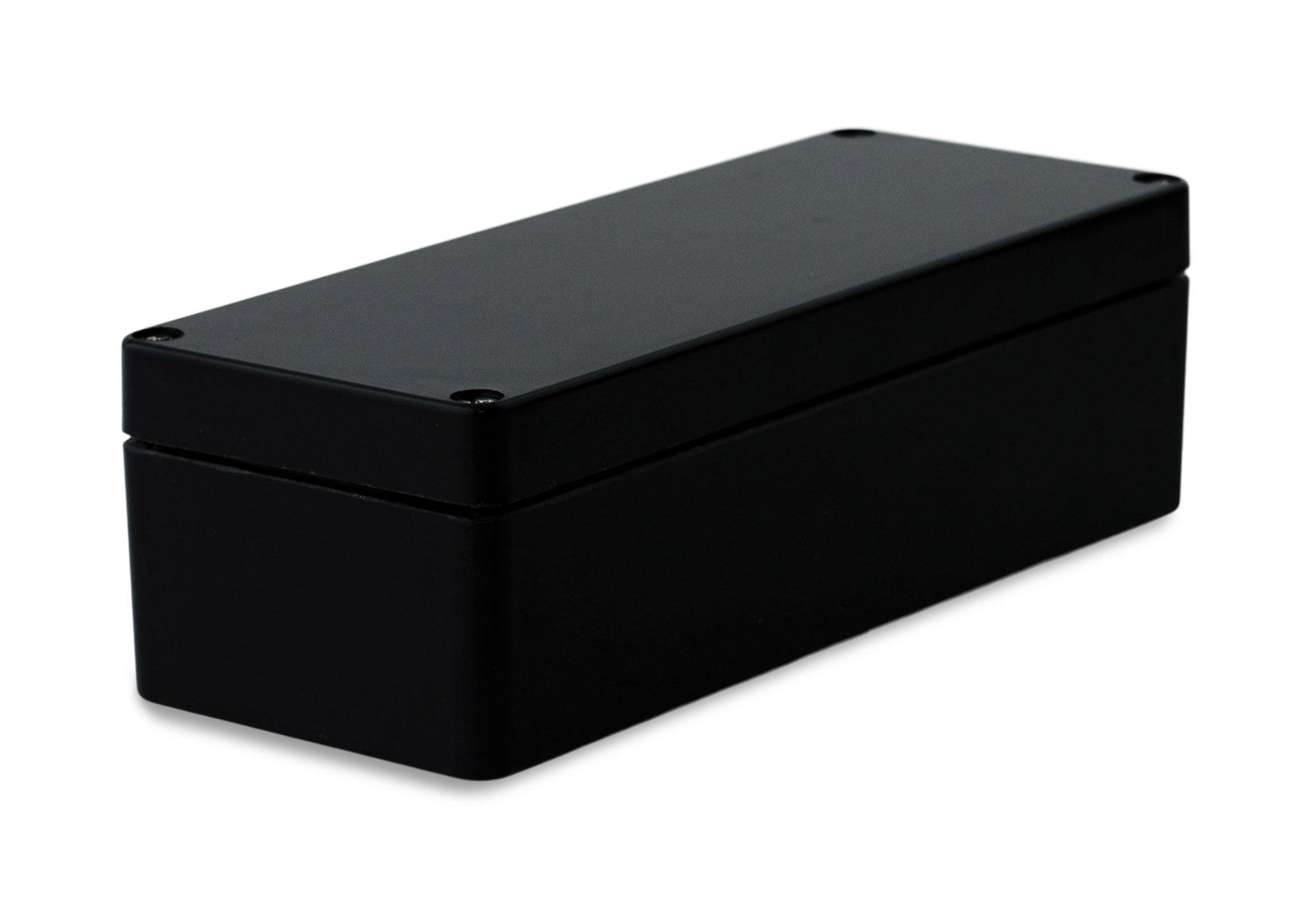

The BXPBPOL22012090-E01-66 enclosure from BOXEXPERT, made of glass fiber reinforced polyester, measures 220x120x90mm and is part of the Elbe polyester series. With IP66 protection, it is dust and waterproof and ideal for harsh environments.
The IK08 impact resistance protects it from bumps and knocks, and the dielectric strength of 18 kV/mm makes it suitable for high voltage applications. The housing is available in false gray (RAL7000) and graphite black (RAL9011).
It is halogen-free and complies with flammability class V0 according to UL94, suitable for temperatures from -40 to +80 °C. BOXEXPERT, an innovative company, offers a wide range of high-quality industrial enclosures and is a reliable partner for a wide variety of applications.
